SOEASY CAC Non-Waterproof aluminum mounting rack Solar structure Carport

    SoEasy EAC-NW Solar Carport Mounting System is developed for different requirements of windload and snowload area, which is a more economical SoEasy carport solution. By optimizing the carport structure, it can achieve the clients requirments and reduce the cost. SoEasy will keep optimizing the design of solar carport mounting system to offer a excellent installation experience for users.



Description



Technical Parameters

Installation Site Open Ground
Foundation Concrete Foundation
Panel Orientation Landscape / Portait
Applicable Framed
Installation Angle 0°-20°
Wind Speed ≥60m/s
Snow Load 1.7KN/m²
Design Standards JIS C8955:2017;
AS/NZS 1170;
DIN1055;
ASCE/SEI 7-10;
International Building Code: IBC 2009
Ground Clearance ≥1800mm
Material AL6005-T5
Fastener Material SUS304
Component Material SUS304 / AL6005-T5
Color Sliver or Customized
Warranty 10 Years



        SoEasy EAC-NW Solar Carport Mounting System is developed for different requirements of windload and snowload area, which is a more economical SoEasy carport solution. By optimizing the carport structure, it can achieve the clients requirments and reduce the cost. SoEasy will keep optimizing the design of solar carport mounting system to offer a excellent installation experience for users.



Installation Steps & Key Feature



1 Customized solutions to maximize the utilization of land resources.
2 Simplifier structure design and easier to be installed.
3 Recyclable aluminum design row material.
4 10 years warranty, 25 years lifelong.
5 Professional design solution and detailed manual will save the cost and time for installation.



High-quality Components



The solar carport mounting systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.

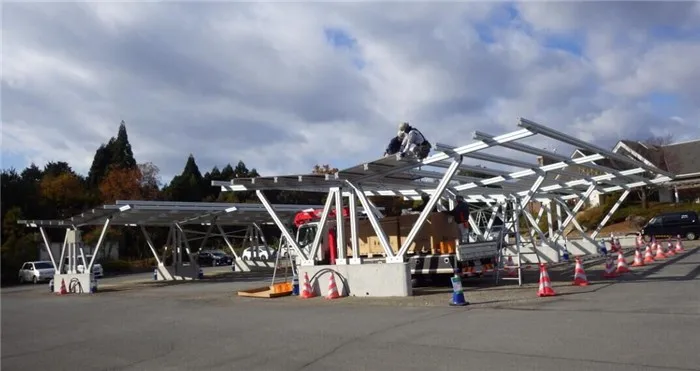

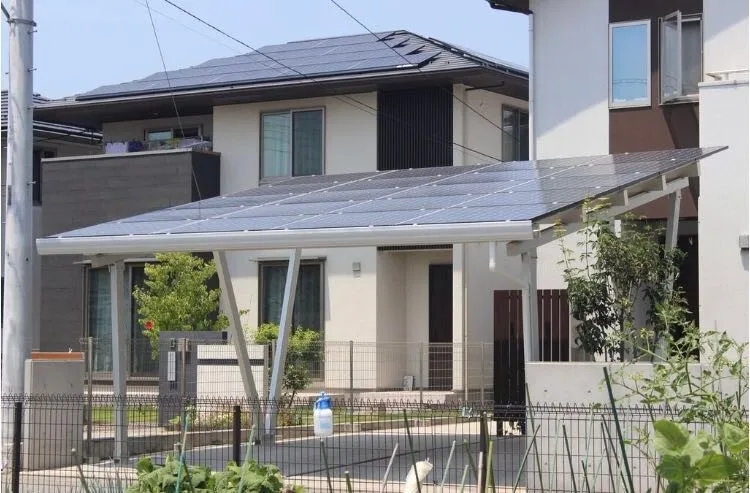

SOEASY Real Projects





Packing & Delivery



– Package: Standard Carton & Steel Pallet- Shippment: BY SEA.
– Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
– Wrapped the aluminium profile with plastic film to against the moisture during shipping.
– Always shiped on time !!!



Our Service–Free Structure Design



Necessary info. for design and quote
1.What is your pv panels dimension? (L/W/H)
2.How many panel are you going to mount?
3.What is your planned panel layout?(row × column)
4.Max wind speed and snow load?

5.Tilt angle of bracket?
About Us
        Soeasy (Xiamen) Photovoltaic Technology Co., Ltd is a high technology company, specialized in the field of solar energy, focused on the mounting system research & development, solar plant development and maintenance service. With over 10 years of experience,professional engineers,highly talented sales team, and support from Japanese partners, Soeasy provides its clients with safe, reliable, stable and efficient One-Stop photovoltaic system solutions. Soeasy believes that time will testify to the right choice, and we will always work on innovation and do our best for a better world.
You can tell us what you need, such as tilt angle, planned panel layout.
