TECHNICAL DATE

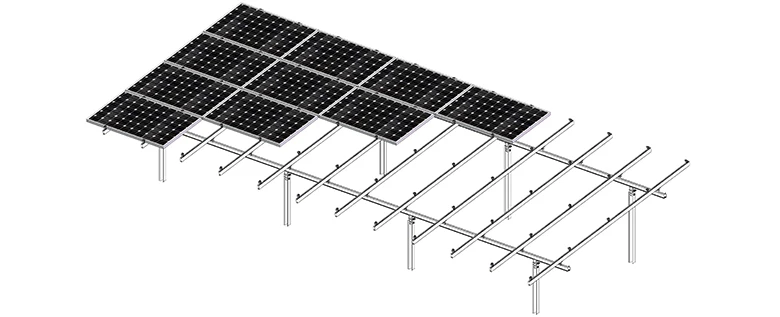

PV-TERRAIN RACKING SYSTEM—G TYPE
Our Soeasy G-type solar racking system is suitable not only for flat ground, but also for tilted terrains. It can be in common use no matter what kind of your panels are, and meets customer needs. We highly recommend this G-type to you when your layouts are three or four rows in landscape.
|
Name
|
Parameter
|
|
Application
|
Open terrain-ground mount
|
|
Wind load
|
≤ 42m/s
|
|
Snow load
|
1.4KN/m²
|
|
PV Modules
|
Framed, Unframed
|
|
Array Layout
|
According to the actual situation
|
|
Module Orientation
|
Landscape , Portrait
|
|
Module Inclination
|
0° – 25°
|
|
Ground Clearance
|
≥ 0.6m
|
|
Standards
|
JIS 8955:2017/DIN1055/ASCE_7-05/AS/NZS1170
|
|
Color
|
Natural
|
|
Warranty
|
10 years
|
Product Description
Flexible and stable system
The G-type solar racking allows for generous tolerances for vertical and horizontal adjustment.
Completely recyclable row materials
All components are made of aluminum, guaranteeing long service life with high recyclable value and low waste disposal cost.

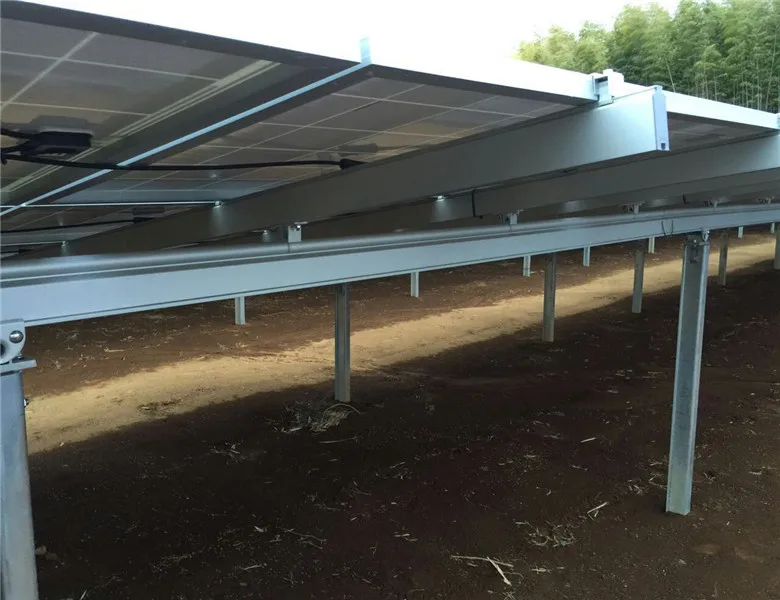

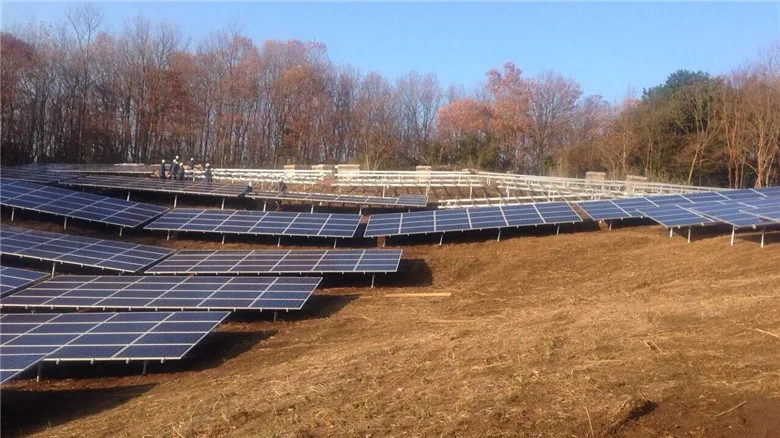

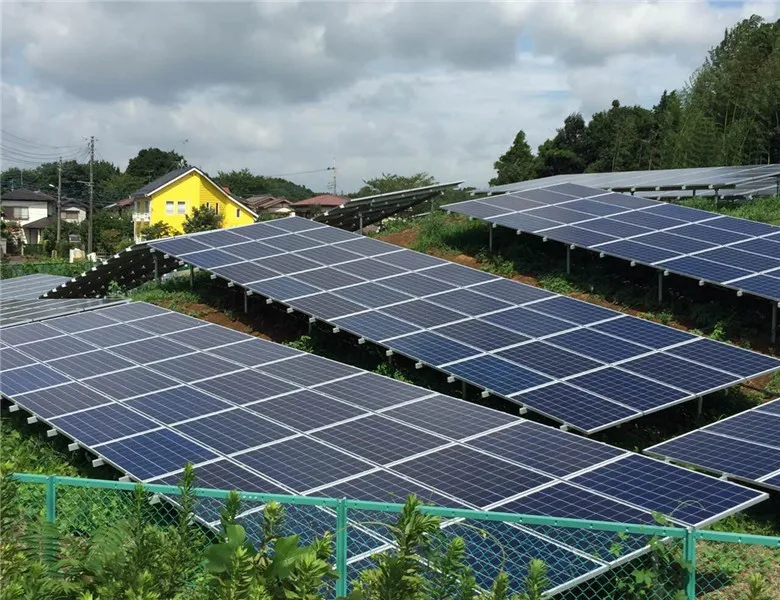

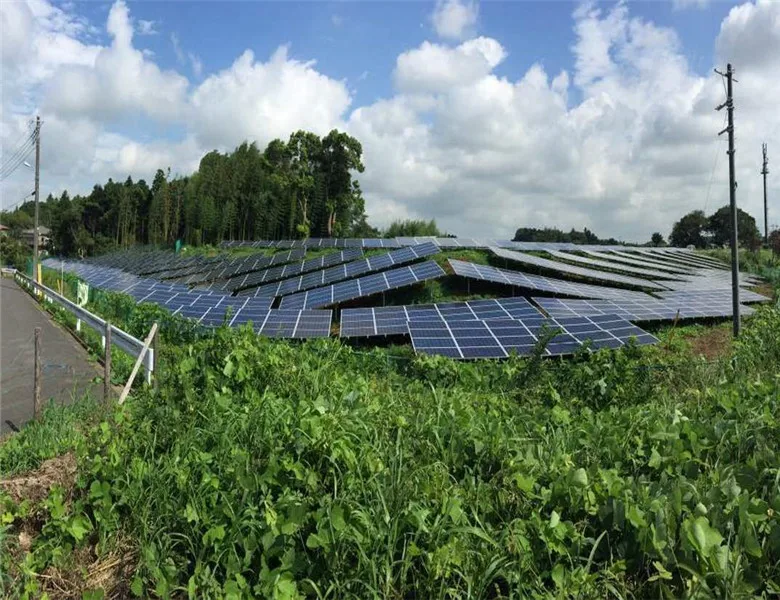

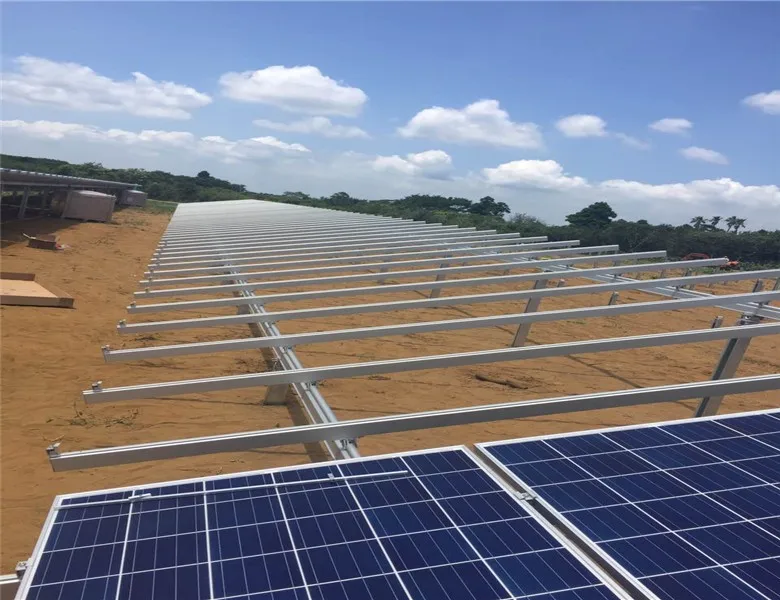

Project Reference
About Us
Our Service
Necessary info. for us to design and quote
1.What is your pv panels dimension?
_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount?
_______Nos.
3.What is your planned panel layout?
________Nos. in a row × ________Nos. in a column
4.How is weather there, such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load
5.May I know the tilt angle you need?
________degree
